PRODUCT
ChemProX Deployment Kit
ChemProX Deployment Kit serves for easily adding chemical detection capability to drones & robots.
ChemProX Deployment Kit delivers an integrated solution for a quick mounting of ChemProX onto multiple types of unmanned vehicles.

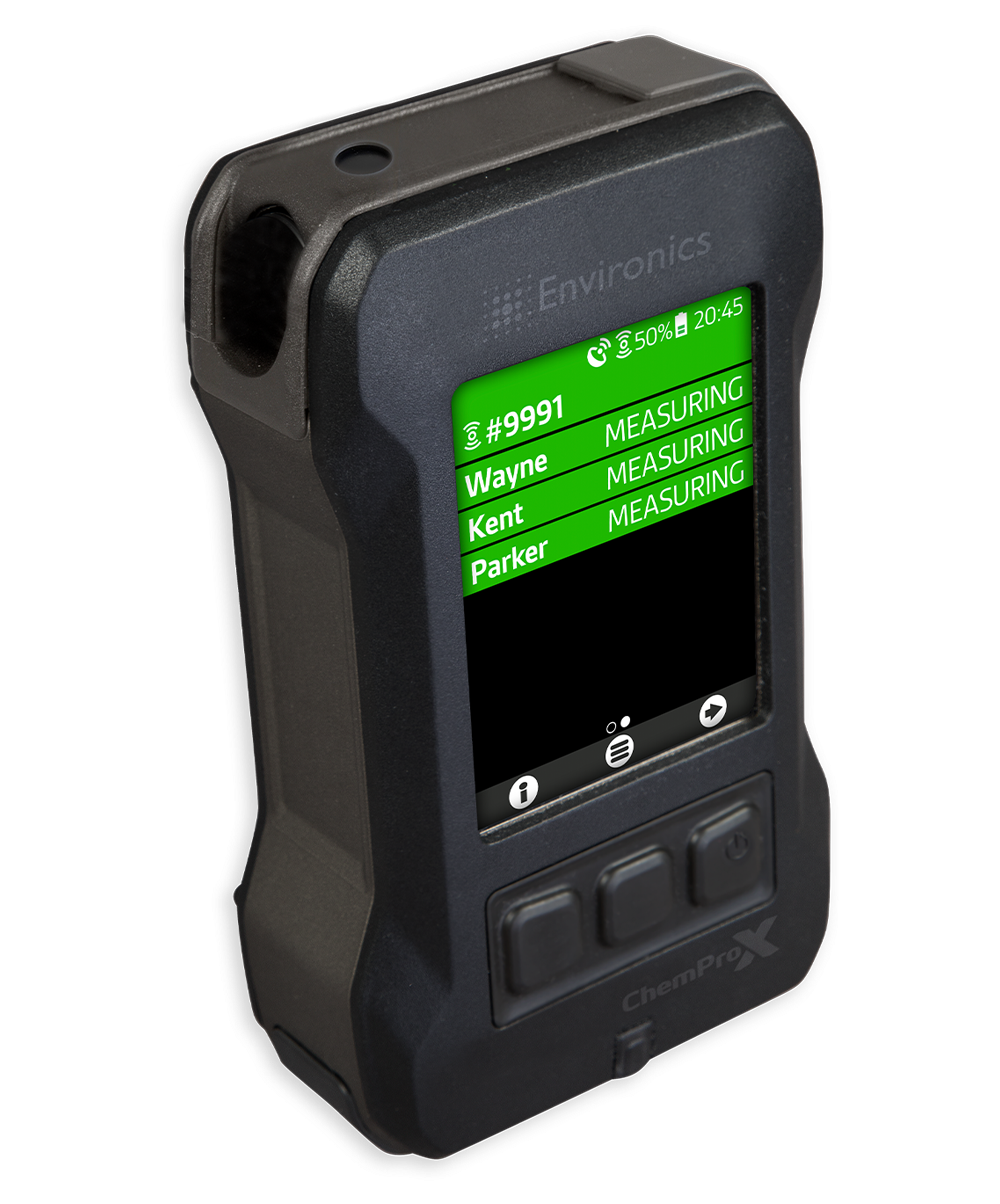

Repeater & Remote Alar Unit
ChemProX RU
Data repeater, remote alarm unit and access point for ChemProX detector network. It enables dynamic 2-way communication and remote control of the mounted chemical detector. ChemProX RU also provides user interface and access to CCT software.

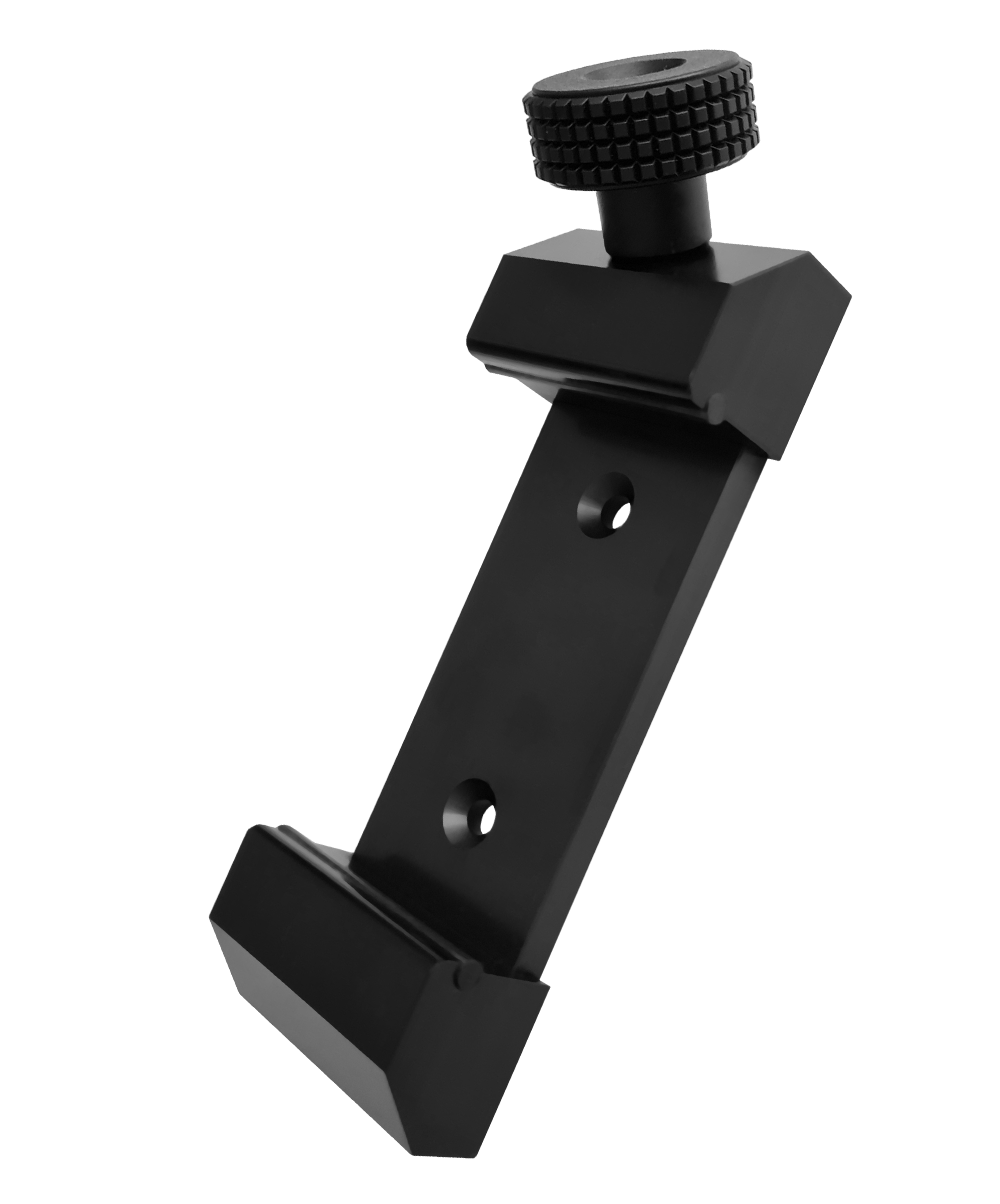

Quick & Easy Mounting
Vehicle Holder
Easy and out-of-the-box mounting solution for ChemProX that can be used on multiple platforms such as drones or robots the organizations already own, as long as their payload allows for docking ChemProX (and ChemProX RDM) weighting approximately 1 kg ( 35 oz).

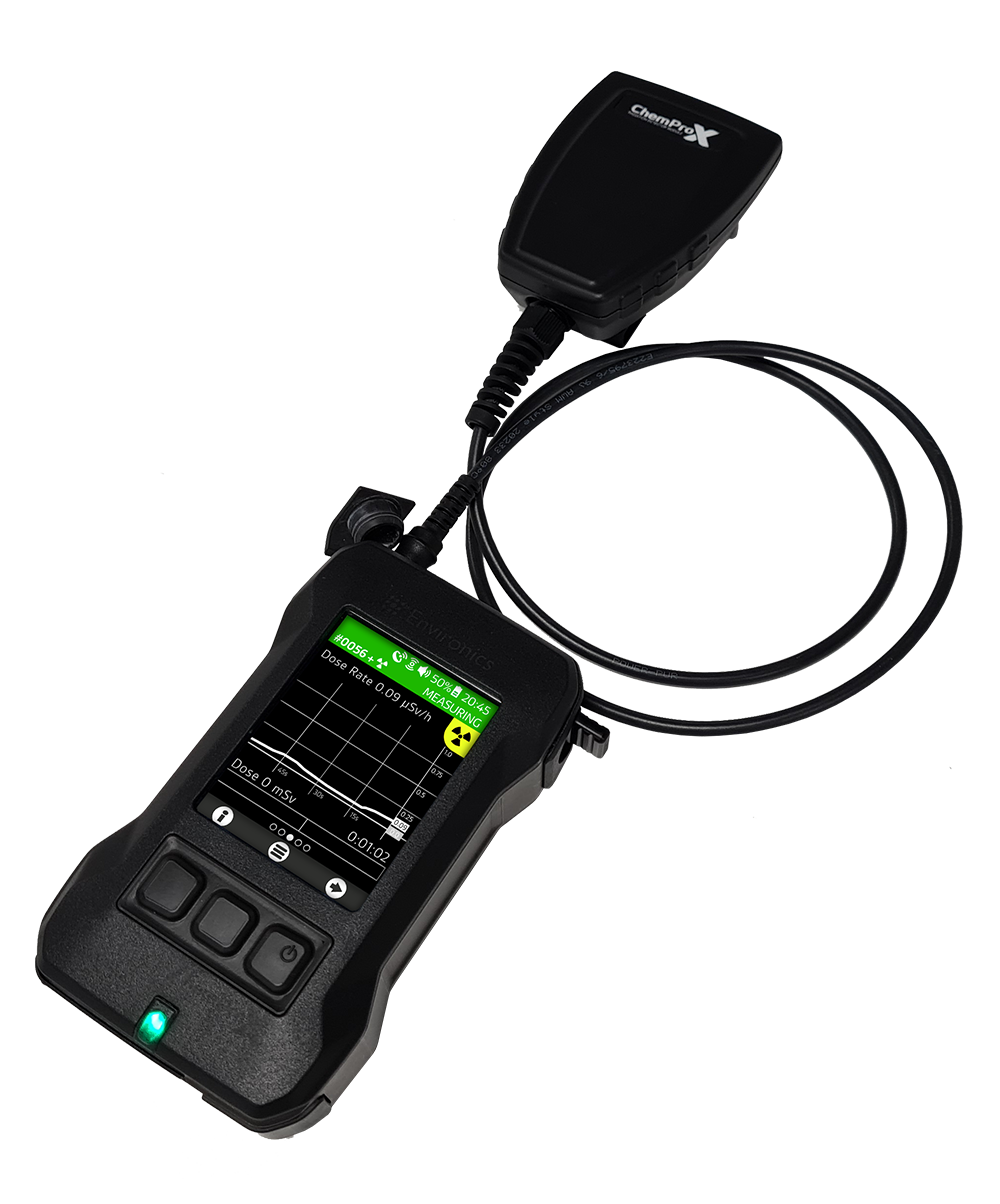

Radiation Detector Module
ChemProX RDM
Plug ‘n play accessory for ChemProX that broadens its use to simultaneously detect radiological and chemical threats. When connected to the detector, the interface menu is automatically updated with radiation detection features such as accumulated dose rate.
Benefits
Why Choose ChemProX Deployment Kit
-
CWA & TIC detection
-
Out of the box solution for your drone or robot
-
Simple and easy installation onto different types of unmanned vehicles
-
Deployable within minutes
-
Dynamic communication for remote detector control
-
Built-in powering, interface, and wireless communication
-
Optional radiation detection
Product
Applications
ChemProX Deployment Kit is a platform independent detection set, that when mounted onto an UAV or UGV features dynamic 2-way communication that allows the operator to remotely control the device.
ChemProX Deployment Kit |
|
Size |
Approx. 520 x 400 x 210 mm (20.5”L x 16”W x 8”H) |
Weight (inc. ChemProX & RU, exc. Optional Items) |
Approx. 9 kg (20 lbs.) |
ChemProX RDM |
|
Size |
Approx. 103 x 74 x 43 mm (4”L x 3”W x 2”H) |
Weight |
Approx. 150g (5 oz.) |
Detected Radiation |
Gamma and X-ray radiation |
Detection Technique |
Geiger-Müller tubes |
For full specs
